Portal - noun: DOOR, ENTRANCE; especially a grand or imposing one.
Pass boldly through to the other side and impose on the most fun you've had on two wheels with the Jamis Portal C1. Its high-modulus carbon fiber frame swings your rear wheel through 130mm of micro-tracking 3VO suspension, renowned for its trail-contouring ability that goes hand-in-hand with big-hit burliness.
A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.
Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.
Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.
Pedals sold separately

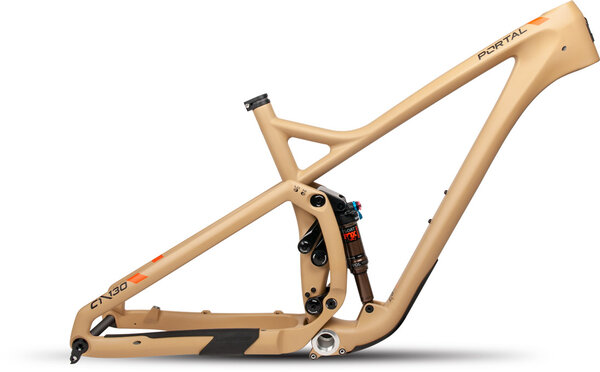

|Frame||Dyad Pro High Modulus Carbon Fiber, 130mm travel 3VO suspension, Enduro Max sealed bearing pivots, 1.5 - 1 1/8" tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chainguide, MRP SXg lower chainguide, SLS 450lb Spring, high/low speed compression, high/low speed rebound, 10mm hardware, replaceable derailleur hanger|
|Fork||Fox Factory 36 Float 29" w/ 3-position adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 140mm travel|
|Headset||FSA Orbit IS Integrated, 8mm cone spacer|
|Rear Shock||Fox DHX2 Factory Series coil shock w/2-position compression switch|
Front: 110 x 15mm
Rear: 148 x 12mm
|Rims/Wheels||Stans Arch CB7 Carbon 29" tubeless|
|Tires||Vittoria Martello 29 x 2.35", TNT tubeless|
|Crankset||Truvativ Descendant Carbon|
|Bottom Bracket||SRAM DUB|
|Chain||SRAM XX1 Eagle, 12-speed|
|Rear Derailleur||SRAM XX1 Eagle, 12-speed|
|Cassette/Rear Cogs||SRAM XG1299, 12-speed, 10-50T|
|Shifters||SRAM XX1 Eagle, 1x12-speed|
|Handlebars||Race Face Turbine R, 780mm x 20mm rise, 35mm diameter|
|Stem||Race Face Turbine R, 50mm extension, 35mm clamp diameter|
|Brakes||TRP G-Spec Trail SL 4-piston hydraulic disc, TR-33 180mm 6-bolt rotors|
|Seat Post||Fox Transfer Dropper, 1x remote|
* Subject to change without notice.
|Desert Storm (Frame kit only-includes rear shock) / 17-inch||845436072524||03-2666BR|
