Details

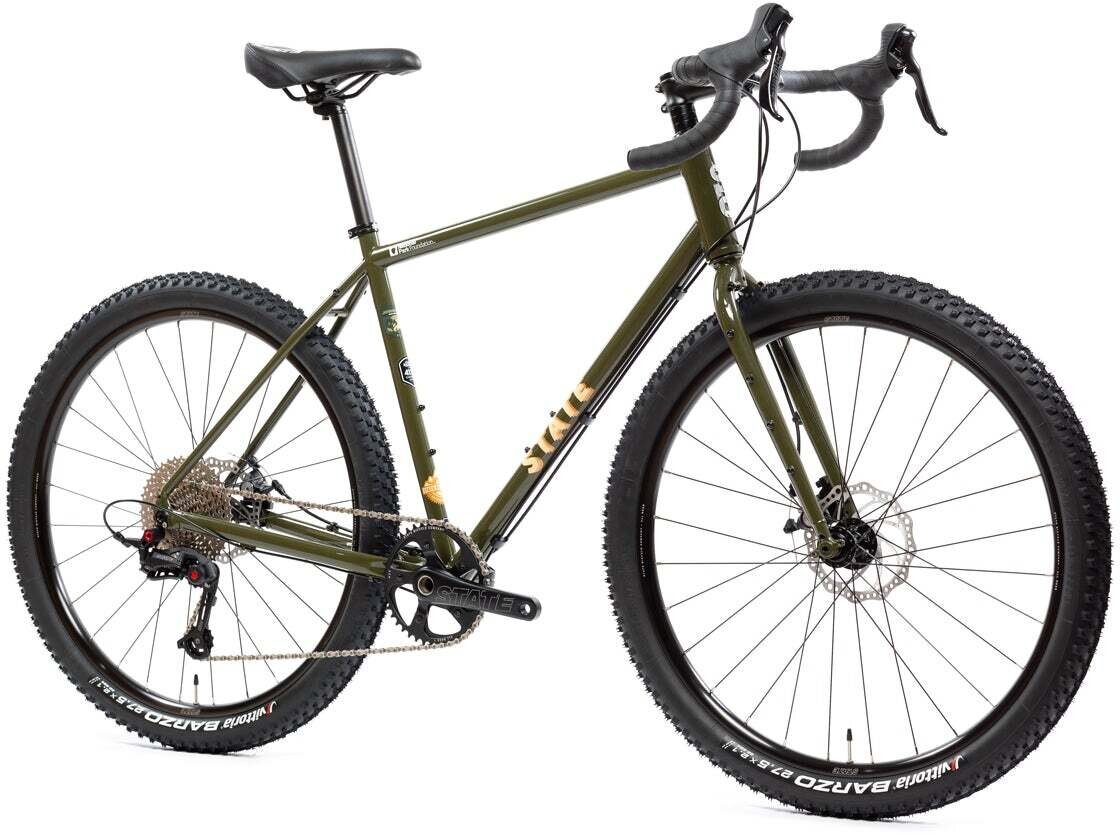

The 4130 All-Road offers the benefits of advanced-gravel technology at an accessible price. Featuring a rugged 4130 Chromoly Steel Frame / Fork w/ plenty of cargo mounts, the choice wheels (thru-axle): 700c with “slick” tires or 650b with knobby tires, 11speed drive-train, and disc-brakes. This is our most capable bike ever! Make it 2-bikes-in-1 by selecting “both” as your wheel set choice and we’ll send you a 2nd pair of wheels, tires, tubes, rotors, and cassettes for easy back-and-forth switching between 700c / 650b.
SPECS
FRAME: 4130 Chromoly Steel with Thru-Axle Dropouts (142mm rear spacing) w/ 2 water bottle mounts, rear mounts for rack and/or fenders
Size XS: Rider Height Recommendation: 5'1" to 5'6"
Size S: Rider Height Recommendation:5'5" to 5'10"
Size M: Rider Height Recommendation: 5'9" to 6'2"
Size L: Rider Height Recommendation: 6'1" to 6'5"
FORK: 4130 Chromoly Steel with Thru-Axle Dropouts (100mm fork spacing)
and 5 sets of mounts for water bottles, accessories, fenders or racks or add the Carbon Fiber "Monster Fork" for $299.99
WHEEL SET:
700c: Tubeless Capable Wheel Set w/ Vittoria Terreno Zero Tires, 38mm
650b: Tubeless Capable Wheel Set w/ Vittoria Barzo Tires, 2.1" (53mm)
EXTRA COST OPTION: Order the SECOND wheel set with tires and tubes, plus matching hubs, cassette, and brake rotors. Receive DOUBLE the versatility for ONLY $399.99 more.
HANDLEBARS: State Bicycle Co. All-Road 1 Bars
BRAKES: Promax DSK-300R Flat Mount (Mechanical / 160MM Rotors (6-Bolt)
DRIVE TRAIN: State Bicycle Co. All-Road 1 (1x11 Drive Train)
Crank - State Bicycle Co. All-Road 1 (42t)
Cassette - 11-42t
Pedals: Platform pedals included
Gearing up for an epic adventure? Upgrade your 4130 All-Road with the SBC Carbon Fiber “Monster Fork”. This fork is specifically designed for self-supported tours and races where carrying more water and gear is a necessity. The Monster Fork has the same disc brake flat-mounts and thru axle dropouts to interchange wheels. The fork also features “3-pack” mounts on each blade for racks, water bottles, and accessory cages. The Monster Fork also has fender mounts and a crown mount for racks or dynamo lights.
We have several of these in stock in store for immediate pickup. Contact us for details!

XS | S | M | L | |
---|---|---|---|---|
A. Reach | 359.8mm | 373.7mm | 371.5mm | 385mm |
B. Stack | 560.7mm | 581.6mm | 602.5mm | 621.5mm |
C. Standover (700c / 650B) | 743mm / 735mm | 772mm / 764mm | 798mm / 790mm | 827mm / 819 mm |
D. Effective Top tube | 510mm | 535mm | 550mm | 575mm |
E. Head Tube Angle | 70.5 | 71 | 71.5 | 71.5 |
F. Head Tube Length | 125mm | 145mm | 165mm | 185mm |
G. Seat Tube Angle | 75 | 74.5 | 73.5 | 73 |
H. Seat Tube Length | 430mm | 470mm | 510mm | 550mm |
I. Bottom Bracket Height | 268mm | 268mm | 268mm | 268mm |
J. Bottom Bracket Drop | 75mm | 75mm | 75mm | 75mm |
K. Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm |
M. Wheelbase | 997.1mm | 1013.1mm | 1054.1mm | 1062.9mm |
O. Chainstay Length | 450mm | 450mm | 450mm | 450mm |
Specs
Frame | 4130 Chromoly Steel; Tire Clearance Frame (650B / 700c) : 53c / 45c |
---|---|
Fork | 4130 Chromoly Steel; 1 1/8 threadless steerer |
Wheels | Aluminum Wheel Set (650b / 700c) |
Rims | Rim Depth: 24mm; Rim Width: 19mm (internal) / 24mm (external); tubeless capable; 28H double wall |
Hubs | Sealed Bearing; Front: 12x100 THRU-AXLE; Rear: 12x142 THRU-AXLE; 6- Bolt |
Spokes | 14G Stainless Steel |
Tires |
700c: Vittoria Terreno Zero 38c (Tubeless) 650B: Vittoria Barzo 2.1" |
Bottom Bracket | Hollow Axle BSA 68mm |
Crankset | State Bicycle Co. All-Road 1; Forged 7075 Aluminum; Crank Arm Length: XS/S: 170mm, M/L 175mm |
Chainrings | State Bicycle Co. All-Road 1; Forged 6061 Aluminum; 42T; 110 BCD |
Shifters | State Bicycle Co. All-Road 1 1x11 |
Cassette/Freewheel | SBC 11-42T 11 speed |
Chain | YBN 11 Speed |
Brakes | Promax DSK-300R Flat Mount (Mechanical) |
Handlebars | State Bicyce Co. All Road Bars; Aluminum 18-deg; W500/420mm; OS31.8 Stem Black |
Stem | Alloy 3D Forged; Clamp Diameter: 31.8mm; Length: XS/S: 90mm, M: 100mm, L: 110mm; Rise: +/- 7 degree |
Headset | FSA ZS-4D 1 1/8" threadless |
Seatpost | Alloy; Diameter: 27.2mm; Length: 350mm |
Saddle | State All-Road; Polyurethane; Steel Rails |
Pedals | Platform Pedal |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Sonoran Tan / 43cm / 650B | 796201634617 | 43-ARTN-650-043 | 210000003193 |
Sonoran Tan / 43cm / 700c | 796201634655 | 43-ARTN-700-043 | 210000003197 |
Sonoran Tan / 43cm / 700c|650B | 796201634730 | 43-ARTN-BOT-043 | |
Sonoran Tan / 47cm / 650B | 796201634624 | 43-ARTN-650-047 | 210000003194 |
Sonoran Tan / 47cm / 700c | 796201634662 | 43-ARTN-700-047 | |
Sonoran Tan / 47cm / 700c|650B | 796201634747 | 43-ARTN-BOT-047 | |
Sonoran Tan / 51cm / 650B | 796201634631 | 43-ARTN-650-051 | 210000003195 |
Sonoran Tan / 51cm / 700c | 796201634679 | 43-ARTN-700-051 | 210000003199 |
Sonoran Tan / 51cm / 700c|650B | 796201634754 | 43-ARTN-BOT-051 | |
Sonoran Tan / 55cm / 650B | 796201634648 | 43-ARTN-650-055 | 210000003196 |
Sonoran Tan / 55cm / 700c | 796201634686 | 43-ARTN-700-055 | 210000003200 |
Sonoran Tan / 55cm / 700c|650B | 796201634761 | 43-ARTN-BOT-055 | |
Pigeon Gray / 43cm / 650B | 796201634532 | 43-ARGY-650-043 | 210000003185 |
Pigeon Gray / 43cm / 700c | 796201634570 | 43-ARGY-700-043 | 210000003189 |
Pigeon Gray / 43cm / 700c|650B | 796201635379 | 43-ARGY-BOT-043 | |
Pigeon Gray / 47cm / 650B | 796201634549 | 43-ARGY-650-047 | 210000003186 |
Pigeon Gray / 47cm / 700c | 796201634587 | 43-ARGY-700-047 | 210000003190 |
Pigeon Gray / 47cm / 700c|650B | 796201635386 | 43-ARGY-BOT-047 | |
Pigeon Gray / 51cm / 650B | 796201634556 | 43-ARGY-650-051 | 210000003187 |
Pigeon Gray / 51cm / 700c | 796201634594 | 43-ARGY-700-051 | 210000003191 |
Pigeon Gray / 51cm / 700c|650B | 796201635393 | 43-ARGY-BOT-051 | |
Pigeon Gray / 55cm / 650B | 796201634563 | 43-ARGY-650-055 | 210000003188 |
Pigeon Gray / 55cm / 700c | 796201634600 | 43-ARGY-700-055 | 210000003192 |
Pigeon Gray / 55cm / 700c|650B | 796201635409 | 43-ARGY-BOT-055 | |
Black Canyon / 43cm / 650B | 796201639131 | 210000004932 | |
Black Canyon / 43cm / 700c | 796201639179 | 210000003766 | |
Black Canyon / 43cm / 700c|650B | 796201639216 | ||
Black Canyon / 47cm / 650B | 796201639148 | ||
Black Canyon / 47cm / 700c | 796201639186 | 210000003764 | |
Black Canyon / 47cm / 700c|650B | 796201639223 | ||
Black Canyon / 51cm / 650B | 796201639155 | ||
Black Canyon / 51cm / 700c | 796201639193 | 210000003671 | |
Black Canyon / 51cm / 700c|650B | 796201639230 | ||
Black Canyon / 55cm / 650B | 796201639162 | 210000003677 | |
Black Canyon / 55cm / 700c | 796201639209 | ||
Black Canyon / 55cm / 700c|650B | 796201639247 | ||
Copper Brown / 43cm / 650B | 796201638974 | 210000003768 | |
Copper Brown / 43cm / 700c | 796201639018 | ||
Copper Brown / 43cm / 700c|650B | 796201639056 | ||
Copper Brown / 47cm / 650B | 796201638981 | 210000004997 | |
Copper Brown / 47cm / 700c | 796201639025 | 210000003721 | |
Copper Brown / 47cm / 700c|650B | 796201639063 | ||
Copper Brown / 51cm / 650B | 796201638998 | ||
Copper Brown / 51cm / 700c | 796201639032 | 210000004488 | |
Copper Brown / 51cm / 700c|650B | 796201639070 | ||
Copper Brown / 55cm / 650B | 796201639001 | ||
Copper Brown / 55cm / 700c | 796201639049 | ||
Copper Brown / 55cm / 700c|650B | 796201639087 | ||
Joshua Tree National Parks Edition / 43cm / 650B | |||
Joshua Tree National Parks Edition / 43cm / 700c | |||
Joshua Tree National Parks Edition / 43cm / 700c|650B | |||
Joshua Tree National Parks Edition / 47cm / 650B | |||
Joshua Tree National Parks Edition / 47cm / 700c | 796201639346 | 210000003198 | |
Joshua Tree National Parks Edition / 47cm / 700c|650B | |||
Joshua Tree National Parks Edition / 51cm / 650B | |||
Joshua Tree National Parks Edition / 51cm / 700c | |||
Joshua Tree National Parks Edition / 51cm / 700c|650B | |||
Joshua Tree National Parks Edition / 55cm / 650B | |||
Joshua Tree National Parks Edition / 55cm / 700c | |||
Joshua Tree National Parks Edition / 55cm / 700c|650B |
