Bombtrack Bicycle Company Bombtrack Cale Aluminum

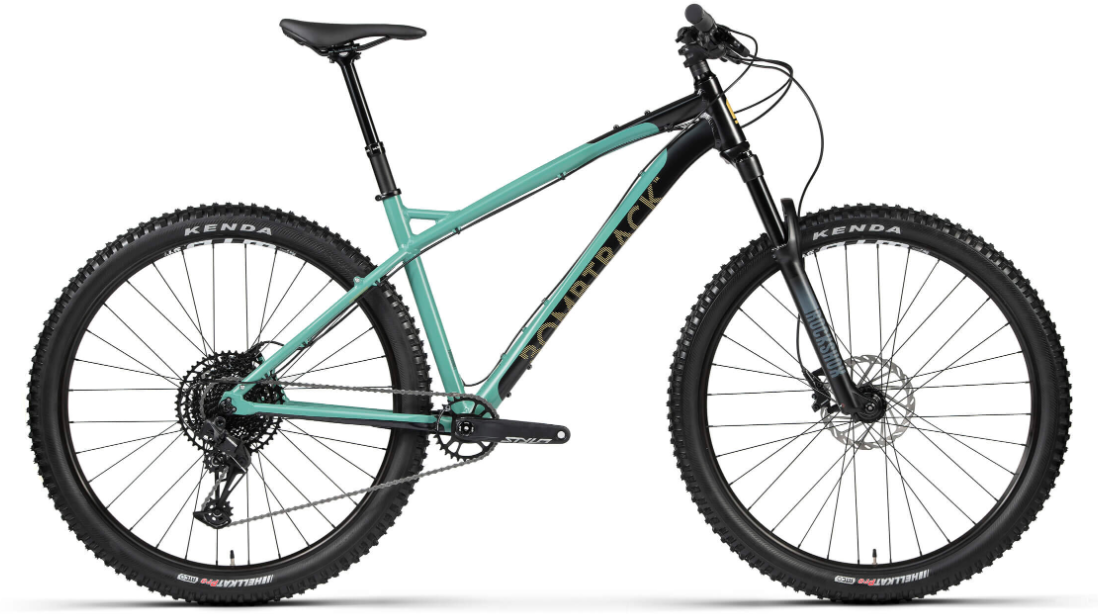

CALE AL
The Cale AL is the aluminium alternative to its steely Cale partner, ready to conquer the mountains as sold. Not scrimping on off-road potential nor cargo-carrying capability, this bike can handle your local trail centre or the high peaks in its stride with ease. Fast-rolling 29’’ wheels plus the chance of using oversized 27.5’’+ tyres give you the option to experiment with home-based modifications. As if these features were not already enough to hit the trails, the bike comes with a dropper post and suspension fork, avec plaisir.

Color 1 Matt Hazy Green
Color 2 -
Frame 6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, Boost spacing, stealth dropper ready, 73 mm BSA BB shell
Fork ROCKSHOX 35 GOLD RL suspension fork, 130 mm travel, 1.1/2" - 1.1/8"
Handlebar BOMBTRACK ILLUSION flat bar, aluminium, 35 mm clamping diameter
Grips BOMBTRACK RETURN 135 mm grips
Stem BOMBTRACK CHASE aluminium stem, 35 mm clamping diameter
Headset Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Levers SRAM LEVEL hydraulic
Shifter SRAM SX-EAGLE 12-speed trigger shifter
Brakes SRAM LEVEL hydraulic disc brakes with 180 mm F / 160 mm R rotors
Crankset TRUVATIV STYLO 6K aluminium crank, Boost DUB
BB SRAM DUB BSA 73 mm
Pedals -
Chain SRAM NX EAGLE chain, 1/2'' x 11/128'', 118L
Chainring SRAM EAGLE X-SYNC 2, narrow-wide, 30 T
Cassette SRAM PG-1210 EAGLE 12-speed, 11 - 50 T
Front derailleur -
Rear derailleur SRAM SX EAGLE, clutch, long cage
Front hub BOMBTRACK GRAD Boost sealed hub, 6-bolt disc
Rear hub BOMBTRACK GRAD Boost sealed hub, HG driver, 6-bolt disc
Through axle 15 x 110 mm / 12 x 148 mm
Front rim WTB ST i29 double wall, TCS 2.0, 32h
Rear rim WTB ST i29 double wall, TCS 2.0, 32h
Saddle BOMBTRACK FUZZ
Seat post KS E20i dropper seatpost, 31.6 mm, 150 mm travel, 485 mm length
Seat clamp BOMBTRACK ORIGIN forged aluminium seat clamp, 34.9 mm
Front tire KENDA HELLCAT PRO ATC 29'' x 2.4" TLR, tubeless ready
Rear tire KENDA HELLCAT PRO ATC 29'' x 2.4" TLR, tubeless ready
Fender -
Rack -
Kickstand -
Light -
Weight 13.8 kg (size M)
Weight frameset 2100 g frame (size L, incl. TA, hanger)
Maximum rider weight 140 kg incl. luggage
ASTM riding condition 4
